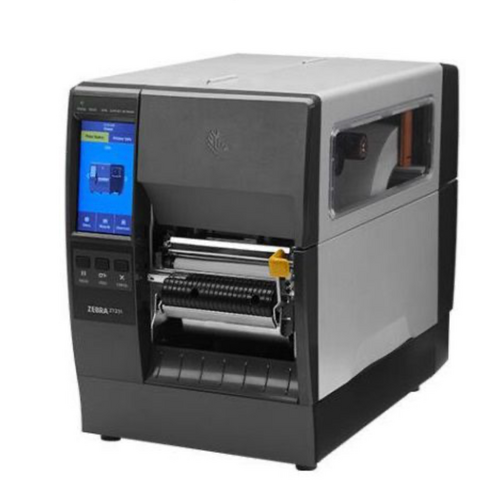

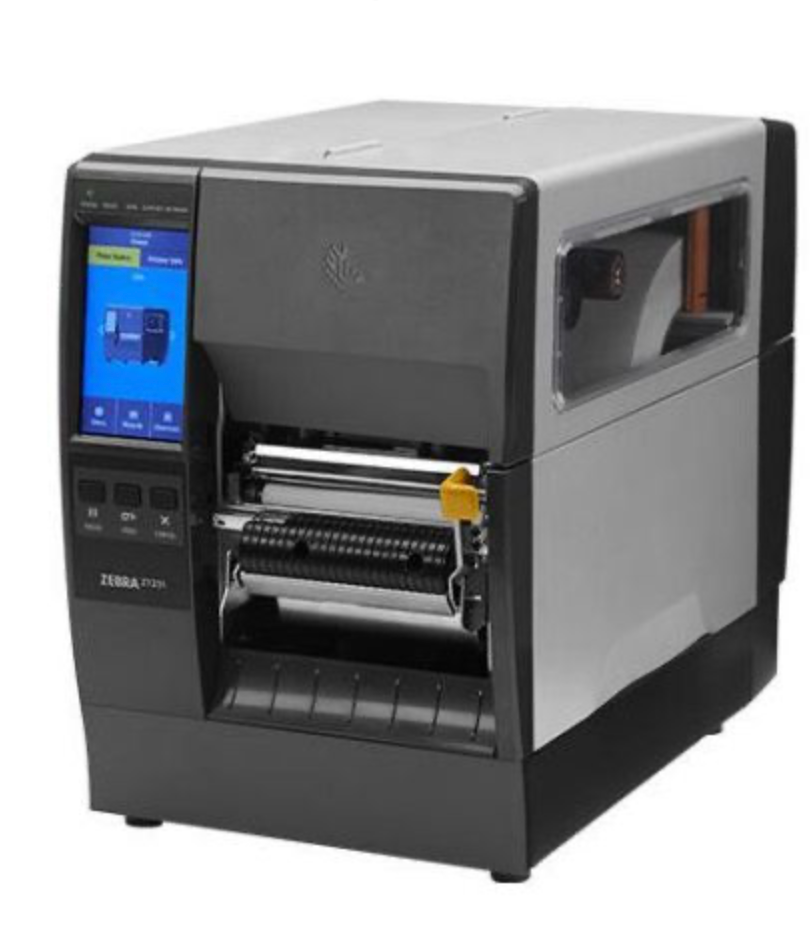

Zebra ZT231 Barcode Label Printer 203dpi Direct Thermal ZT23142-D0P000FZ

The Zebra ZT231 Direct Thermal Label Printer delivers the winning combination of the right features at the right price, along with the long-lasting quality you expect from Zebra. Fast print speeds, high-resolution print quality, large color touchscreen, future-forward design and more.

Features:

• Print methods: Direct Thermal Model
• 203dpi Print Resolution
• Construction: metal frame and metal enclosures
• Bi-fold media door with large clear window
• Side-loading supplies path for simplified media and ribbon loading
• Thin film printhead with E3 Element Energy Equalizer for superior print quality
• Three-color LEDs for quick printer status
• 4.3” color resistive touch screen with intuitive menu for quick operation and settings
• Communications: USB 2.0, RS-232 Serial port, 10/100 Ethernet, and USB Host
• ENERGY STAR® certified
• Bluetooth Low Energy (BTLE) technology for enhanced location precision
• ZebraDesigner Essentials – easy label design tool free at www.zebra.com/zebradesigner
• Real-Time Clock (RTC). ZT23142-D0P000FZ
• Replacement for Zebra ZT230
• 12 Month Warranty

Applications:

• Asset Management
• Cross Docking
• Inventory Management
• Lab Sample Tracking
• Receiving/Shipping
• Reverse Logistics
• Work-in-Process Tracking
• Compliance Labeling
• Information Labels
• Medical Record Labeling
• Order Labeling
• Prescription Labeling
• Quality Control

Specifications:

• 256 MB SDRAM memory
• 256 MB on-board linear Flash memory
• Maximum Print Speed: 12 ips (203 dpi), 8 ips (300 dpi)
• Moveable transmissive and reflective sensors
• Operating Systems - Windows and Other - Click on Link Printer Drivers

Media Types and Handling:

• Maximum non-continuous Label Length: 991mm
• Maximum Print Width: 104mm
• Maximum Print Lenght: 203 dpi: 157 in/3988 mm, 300 dpi: 73in/1854 mm
• Maximum Label Width: 19.4mm to 114mm
• Maximum Roll Diameter: 203 mm on a 76 mm core / 152 mm on a 25 mm core
• Reflective Media Sensor, Transmissive Media Sensor
• Media Thickness: 254 %XB5m
• Media Type: Black Mark, Continious Label,  Die-Cut Label, Notch

Firmware:

• ZBI 2.0™ — Optional powerful programming language that lets printers run stand-alone applications, connect to peripherals, and much more.
• ZPL and ZPL II™ — Zebra Programming Language provides sophisticated label formatting and printer control and is compatible with all Zebra printers.
• EPL and EPL2™— Eltron Programming Language with Line Mode simplifies label formatting and enables format compatibility with legacy applications. (EPL with Line Mode available on direct thermal models only.) (EPL available on 203 dpi models only.)
