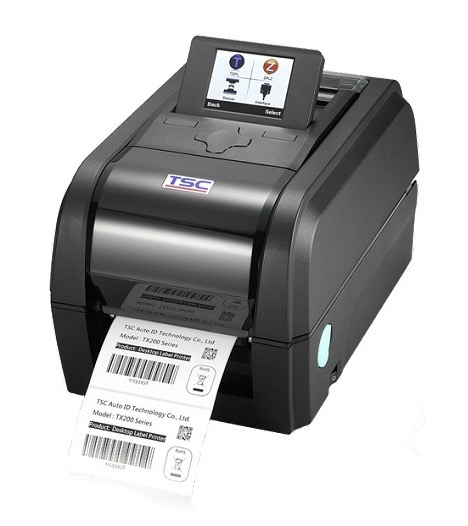

TSC TX200 Advanced Thermal Transfer USB ETH Desk Top Label Printer 203DPI 99-053A001-0004

The TSC TX200 Advanced Thermal Transfer USB ETH Desk Top Label Printer 203DPI 99-053A001-0004 is perfect for printing barcode and shipping labels, as well as office labels.

Included in the box: TX200 Printer, USB cable, Australian Power supply and Wall plug, Free Basic Label Design Software.

Ideal for: Parcel Shipping, Mail Room Address labels, Routing Labels, Shipping & Receiving Labels, Entertainment and Transportation Ticketing.

Resolution: TX200: 8 dots/mm (203 DPI)
Printing method: Thermal Transfer & Direct Thermal
Max. print speed: TX200: 203 mm (8")/second
Max. print width: TX200: 108 mm (4.25")
Max. print length: TX200: 25,400 mm (1,000")
Enclosure: Clamshell with double-walled plastic
Physical dimension: TX200/TX300: 226 mm (W) x 198 mm (H) x 332 mm (D) or 8.90" (W) x 7.80" (H) x 13.07" (D)
Weight: TX200/TX300: 3.75 kg (8.27 lbs)
Label roll capacity: 127 mm (5") OD
Ribbon: 300 m long, max. OD 67 mm, 1" core (ink coated outside)
Ribbon width: 40 mm - 110 mm (1.6" - 4.3")
Processor: 32-bit RISC CPU
Memory: 128 MB Flash memory and 128 MB SDRAM
Interface: USB 2.0 RS-232 Internal Ethernet, 10/100 Mbps USB Host
Optional External Bluetooth and WIFI Slot-in 802.11 a/b/g/n wireless
Operation switch, button, LED/LCD: TX200/TX300: 1 power switch, 1 feed/pause button, LED panel with 8 big icons. The 3.5" color TFT Display is standard for the TX600 and optional for the TX200 and TX300
Power: External universal switching power supply, Input: AC 100-240V, 2.5A, 50-60Hz, Output (TX200/TX300): DC, 24V, 3.75A, 90W , Output (TX600): DC 24V, 5.41A, 130W
Sensors: Transmissive gap sensor, Black mark reflective sensor (position adjustable), Ribbon end sensor (Standard for TX600, Factory Option for TX200/TX300), Ribbon encode sensor, Head open sensor, Real time clock (Standard for TX600, Factory Option for TX200/TX300)
Internal fonts: 8 alpha-numeric bitmap fonts, Monotype Image true type font engine with one CG Triumvirate Bold Condensed scalable font
Bar code: 1D bar codes including Code 39, Code 93, Code 128UCC, Code 128 subsets A.B.C, Codabar, Interleaved 2 of 5, EAN 8, EAN 13, EAN 128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China post, ITF14, EAN14, Code 11, TELEPEN, TELEPENN, PLANET, Code 49, Deutsche Post Identcode, Deutsche Post Leitcode, LOGMARS
2D bar codes including TLC39, CODABLOCK F mode, PDF-417, Maxicode, DataMatrix, QR code, Aztec, Micro PDF 417, GS1 DataBar (RSS barcode)
Font and barcode rotation: 0, 90, 180, 270 degree
Printer language: TSPL-EZ™™ (Compatible to EPL, ZPL, ZPL II)
Media type: Continuous, die-cut, black mark, fan-fold, notch (outside wound)
Media width: 19-112 mm (0.75" - 4.4")
Media thickness: 0.055~0.254 mm (2.17-10 mil)
Media core diameter: 25.4-38.1 mm (1" - 1.5")
Label length: TX200: 3-25,400 mm (0.1" - 1,000")
Environment condition: Operation: 5-40°C, 25-85% non-condensing Storage: -40-60°C, 10-90% non-condensing
Safety regulation: FCC Class B, CE Class B, RCM, UL, CUL, TÜV/Safety, CCC, BIS, EAC, ENERGY STAR®
Environmental concern: Comply with RoHS, WEEE
Accessories: Windows labeling software CD disk, Quick start guide, USB cable, External universal switching power supply, Power cord
