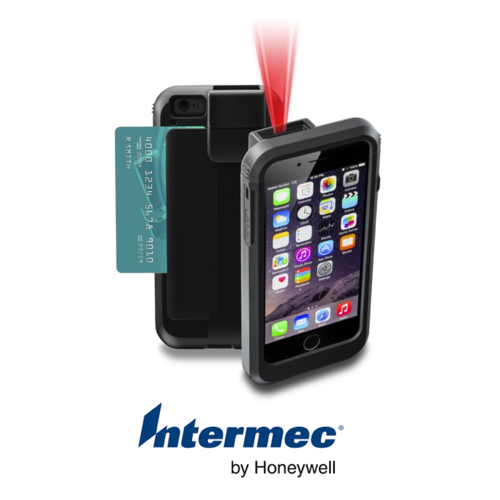

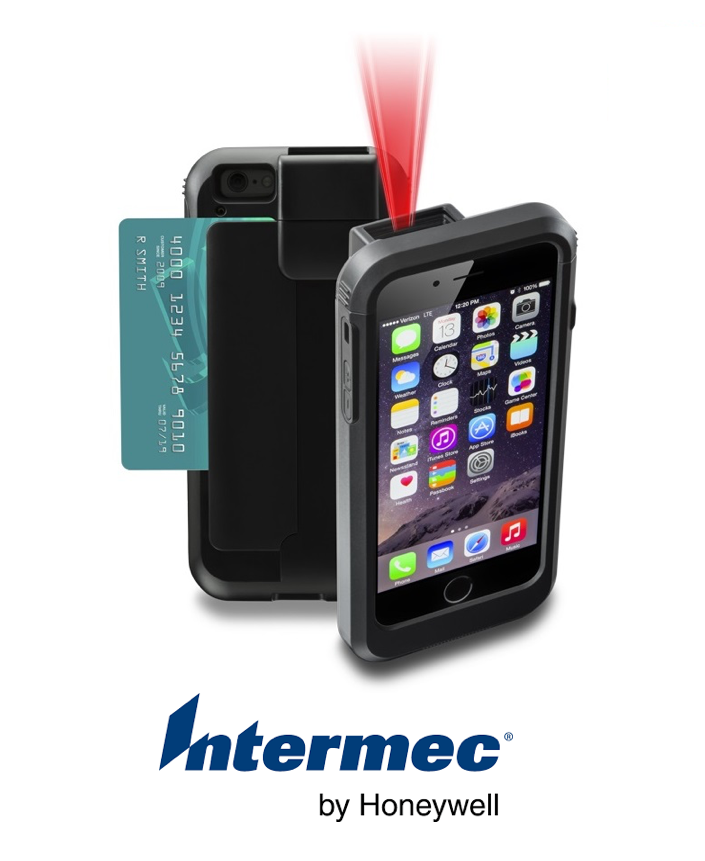

Linea Pro 5 for iPod 5, 6, 7 - 2D Mid Range Imager Scanner, MSR

This Model:

• Linea Pro 5 with Mid Range Zebra 2D Imager Scanner
• 3 track Magnetic Stripe Reader
• Suitable to Apple iPod Touch 5th and 6th and 7th Generation
• Mid Range up to 1.3 meters depending on the type of barcodes

Specifications:

• One Scanning Button
• 2D High Speed Zebra Imager Scanner
• LED: 4 LEDs for battery status
• Weight: 120 grams
• Dimensions 2D Model:  142mm x 69mm x 27mm
• Cables: Standard USB A to mini B cable
• Battery: Rechargeable Li-ion Battery 3, 7V 1300mAh, charging from USB port or Single/Gang Charger
• Magnetic Stripe Reader: 3-track bidirectional reading capabilities - Type: ISO 7816-1/2/3 compatible & RAW mode
• Audio Indicator: Electromagnetic Buzzer

Communications:

• USB Interface – between Linea Pro 5 and iPhone 5/iPod touch 5
• USB Synchronization between iPhone 5/iPod touch 5 & PC

Barcode Type:

• UCC/EAN 128, EAN 13, EAN 8, UPC A, UPC E, UPC E1, Code 11, Code 39, Code 93, Code 128, GS1, Matrix 2 to 5, Code 11, 2 of 5 industrial, 2 of 5 interleaved, Codebar, MSI/Plessey, UK/Plessey, IATA,ISBN, ISMN, ISSN, S-code, Telepen, RSS 14, RSS Limited, RSS-Expanded, PDF417, Data Matrix, QR code, Maxi code

Operating Environment:

• Operating temperature: 0°C to +40°C
• Operating humidity: 35 to 85% RH
• Storage temperature: -5°C to +40°C
• Storage humidity: 10 to 90% RH
•

Linea Pro 5 for iPod 5, 6, 7 - 2D Mid Range Imager Scanner, MSR

Features:

• Scan: Read all the most widely used barcodes in business today.
• Swipe:  Conveniently and securely run cards through the 3-track mag-stripe reader.
• Over 100 Compatible Apps
• Development - Full SDK available for the iOS platform

Optional Bluetooth would usually be a requirement for customers who want to do onsite printing for example to print parking violations, ticketing, mobile receipting and more.

The Linea-Pro is the hardware solution for adding barcode scanning and mag-stripe reading to iPhone/iPod touch devices. Special software must be used to process the information captured by the barcode scanner and magnetic stripe reading feature.

Linea-Pro does not come with any included software, however there is a Linea-Pro SDK available - please contact POS'99 for further details.
